High performance
This oscilloscope is incredibly powerful. Additional to the scope it also includes an FFT analyzer, data logger, sine wave generator, and XY module.
Cost-effective hardware

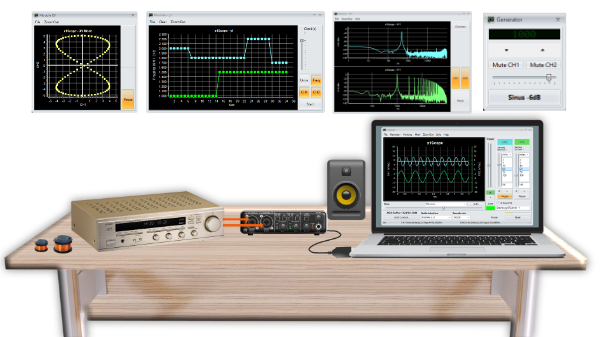

With a standard USB audio interface you transform your PC into a professional measuring device and signal generator.
Universally applicable
x1Scope is ideal for measuring audio equipment (hi-fi, PA, car, etc.) in hobby or professional environments.

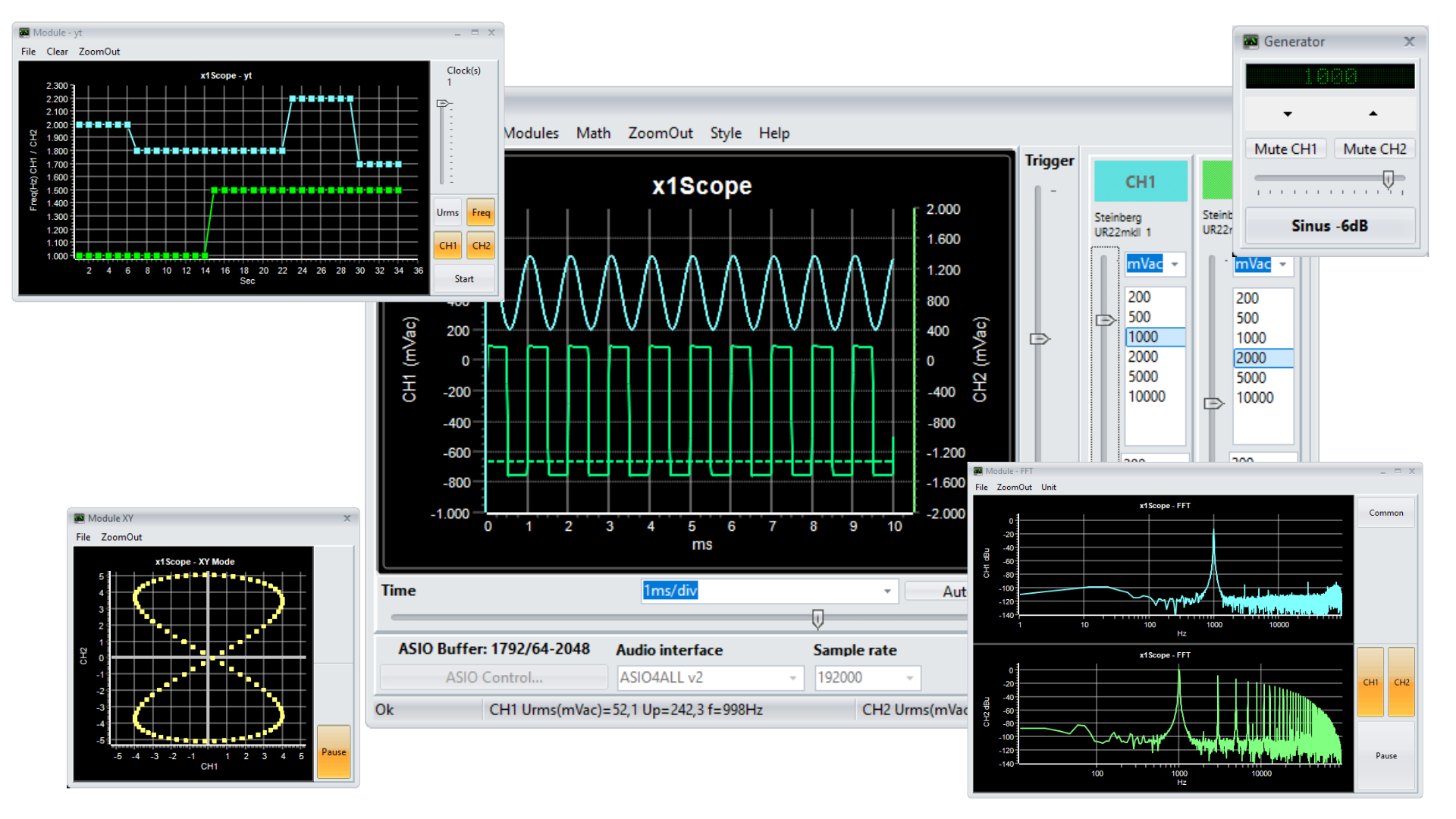

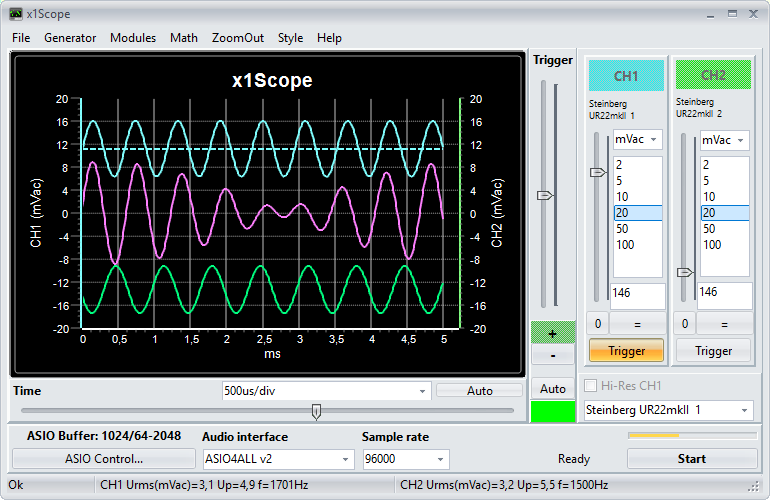

Module Oscilloscope
x1Scope is a high-resolution oscilloscope. Voltages are resolved very finely with up to 192kHz/32 bits.
The scope has 2 channels + one channel for mathematics (CH1+CH2...).
Don't miss a thing
Hi-Res: In Hi-Resolution Mode, signals with few samples are accurately reproduced through oversampling.
Zoom
You can navigate the measurement diagrams of the modules with simple mouse gestures. These include zooming in/out and horizontal and vertical scrolling.
Modul FFT spectrum
Parallel to the oscilloscope, the FFT module displays the frequency spectrum. This allows distortions to be quickly detected, up to almost 100kHz depending on the audio interface!
Module Data logger
The yt data logger repeatedly records the voltage or frequency from both channels at the set interval and uses this to generate a diagram (x-axis time, y-axis voltage or frequency).
Module XY
In the XY module, both input signals are projected onto the X and Y axes. The resulting figures (Lissajous) provide information about the phase and frequency ratio of channel 1 to channel 2.
Module Sine-Generator
The sine wave generator included in the x1Scope has very low distortion and is useful when working with audio equipment. It outputs the signal to either one or both outputs of the audio interface. The level can be conveniently adjusted in the software within a range of 60dB.
Module Active Viewer
The measurement views can be saved from all modules. With the integrated Active Viewer , you can access and display them later. Even zooming in for a detailed view is possible later in the viewer.
3 Styles
x1Scope includes 3 different color styles. This allows you to customize the interface to suit your personal preferences.
Highlights
- 2 channels + math
- x-axis sampling rate up to 192kHz
- y-axis resolution up to 32bit
- Hi-Res Mode (oversampling)
- Calibrate inputs
- Measurement Ueff, Upeak, frequency
- Math: CH1+CH2, ....
- Active Viewer
- 2-channel FFT module
- 2-channel data logger voltage/frequency
- XY display (Lissajous figures)
- Low distortion sine signal generator
- Save scope, FFT, data logger, XY
- Zoom in on all graphics
- and much more
See for yourself how powerful it is, without any risk. Download the software today from our download area.
System requirements
PC Laptop
- MS Windows 10 or 11, 32 or 64 bit
Audio interface
- Audio interface with ASIO drivers
- Sample rate 44.1 kHz to 192 kHz
- Resolution 16bit, 24bit, 32bit
- Recommendation audio interface: e.g. Behringer UMC202HD, UMC404HD, Yamaha URX22C or Focusrite Scarlett 2i2
