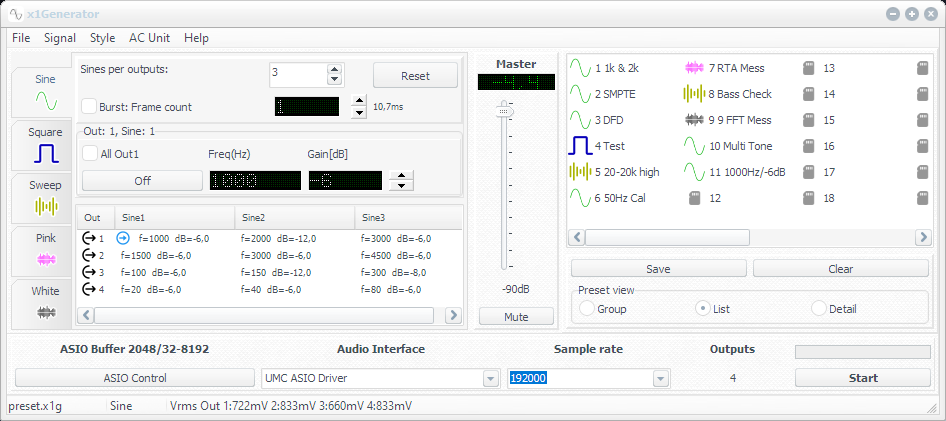

Multi-Sine
Easily create any sine wave combinations from up to 3 sine wave frequencies (e.g. an SMPTE signal). Ideal for measuring non-harmonic distortion.
Low-distortion signals
Thanks to its high-resolution signal generation, the x1Generator provides signals with particularly low distortion.
No need for expensive hardware
With a standard USB audio interface you transform your laptop into a professional 24-bit/192k signal generator in no time at all.
Highlights
- 32-bit signal processing for extremely high signal dynamics
- High sampling rate up to 192 kHz, ideal for audio
- Supports audio interfaces with 1-32 outputs
- ASIO driver support
- Mute individual outputs with a click
- 32 memory locations for quick test tone access
- Import/export memory locations

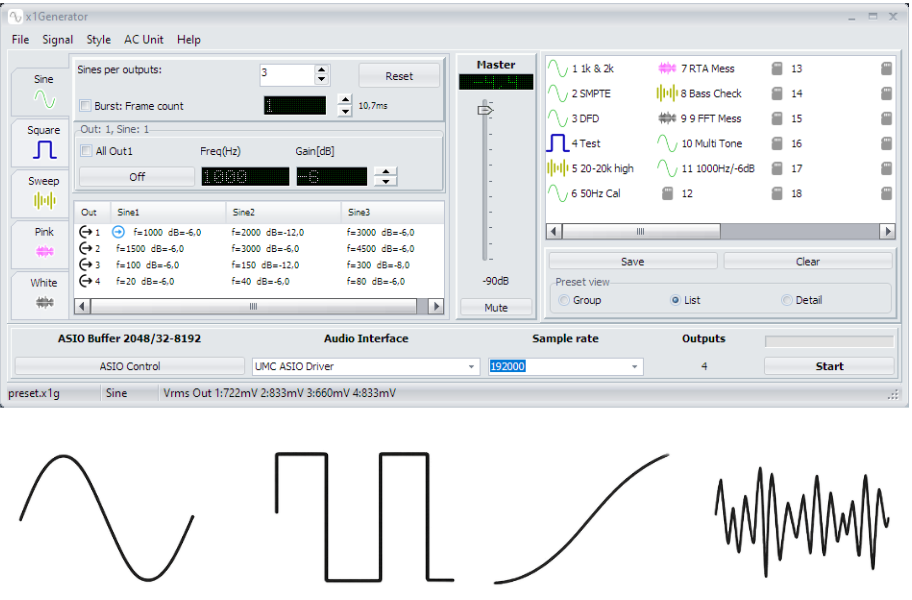

- Signal shapes: sine, square, sweep, pink/white noise
- Frequency input in 1Hz increments
- and much more...
Powerful
Many generators output only one signal. And usually, this is the same signal at all outputs.
x1Generator can output different signals at each output! And it can do so at up to 32 outputs.
Multi-sine: The generator also generates multi-sine signals, ideal for non-linear distortion measurement!
Highly accurate signals
32-bit signal processing guarantees high signal dynamics, which is necessary for hi-fi measurements.
Signals for modulation distortion measurement
Simply output any sine wave combinations from up to 3 sine wave signals (frequency/level). Applications include DFD measurements or signals for the MOD method according to IEC60268/3.
Multi-Channel
x1Generator supports signal output to sound cards with 1 to 32 outputs. For the sine/square waveform, you can configure the signal individually for each output.
The presets clearly displays your stored signals. This allows you to quickly access your preferred signals via a click. It stores all details about the signal type and the master level. For better readability, you can assign a name or use the automatically assigned one. For the view there are 3 filter modes:

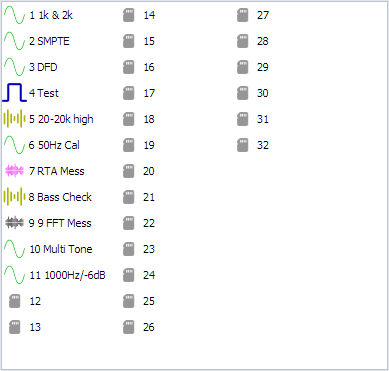

List

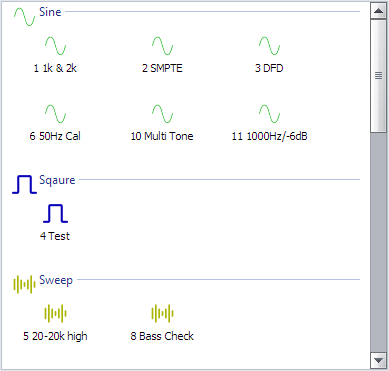

Group

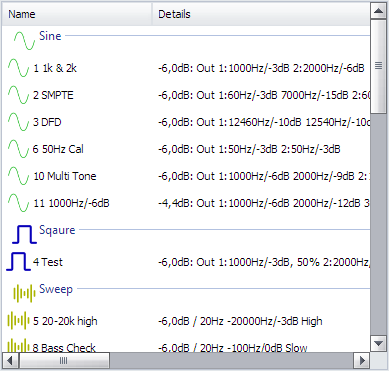

Detail
See for yourself how powerful it is, without any risk. Download the software today from our download area.
Signale
- Resolution 16-24-32bit (Y) and up to 192kHz (x) 1)
- Supports 1-32 audio interface outputs
- Signal types Sine, square, sweep log, pink & white noise
- Frequency range 10Hz to 95kHz 1)
- Level Signal in 1dB steps, 0..-100dB
- Level Master in 0.1dB steps, 0..-90dB
- Display Output voltage in mV, dBu, dBV
- Copy & paste signal details to output
Signal preset
- 32 memory locations
- List, group, and details view
- Import/export for backup or sharing
- Details per location in the footer
PC, Laptop
- MS-Windows 10/11 (32/64bit)
Audio interface

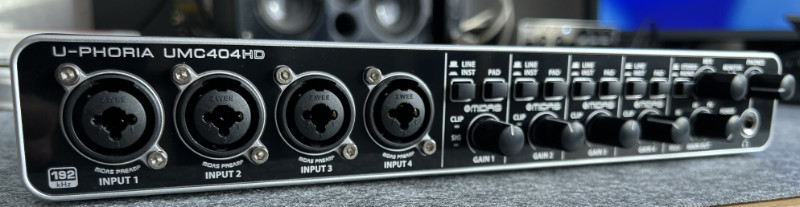

- Audio interface with ASIO drivers, like Behringer UMC202HD, UMC404HD, Yamaha URX22C or Focusrite Scarlett 2i2
- Audio interface compatible with ASIO4ALL
- Min. sample rate 44100kHz, 16bit
- Recommendations/voltage ranges see PDF manual
Subject to technical changes. 1) Depends on the audio interface.
